IP Addressing scheme:

Washington Elementary School District has been given a class B IP address of 130.10.0.0. This will be divided into subnets by borrowing 7 bits from the host portion, giving 508 hosts per subnet. Subnet mask is therefore 255.255.254.0

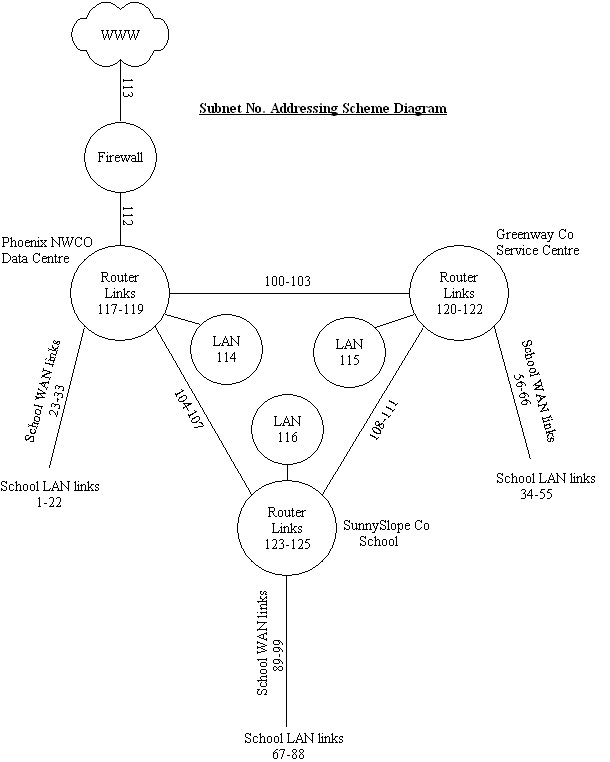

Subnets will be allocated according to the schedule below:

Phoenix NWCO

Subnets:

1-22 School LANs

23-33 WAN connections to schools

114 Local LAN

100-103 WAN connections to Greenway

104-107 WAN connections to Sunnyslope CO

112-113 Firewall / Internet services segment

117-119 Hub routers interconnection

Greenway CO

Subnets

34-55 School LANs

56-66 WAN connections to schools

115 Local LAN

100-103 WAN connections to Phoenix

108-111 WAN connections to Sunnyslope

120-122 Hub routers interconnection

Sunnyslope CO

Subnets

67-88 School LANs

89-99 WAN connection to schools

116 Local LAN

104-107 WAN connections to Phoenix

108-111 WAN connections to Greenway

123-125 Hub router interconnection

Note:

Two subnets will be reserved for each school to allow for the implementation of two virtual LANs (VLANs). One VLAN for the Curriculum (C) network for student use and one for the Administration (A) network for staff use.
